SALTIGA BAY JIGGING SPINNING

The Saltiga Bay Jigging Reel. The flagship saltwater spinning reel in the Diawa line, utilizes cutting edge technology and the smoothness of operation that the 13 bearing system assures. The hallmark of this distinctive reel is the ground breaking development of the one-piece Monocoque Body. This design incorporates a one-piece Aluminum Frame and a one-piece threaded side plate. Because screws are not necessary to attach the sideplate and hold the main gear, the interior space in the body is greater allowing for a larger more powerful gear held in place by the lighter, sturdier body rather than the traditional side plate. The threaded 360 degree support system side plate also increases the integrity of the body as a whole and prevents water or debris intrusion. The strength to weight ratio of this design is unmatched. The larger main gear is of Hyper Digigear design and tooled from harder brass. The main shaft is Magsealed reducing saltwater and debris intrusion. With 5.7 to 1 and 4.9 to 1 gear ratios, the Saltiga Bay Jigging Reel is designed for a variety of offshore fishing and jigging applications and heralds the arrival of the next generation in spinning reel design.


FEATURES:

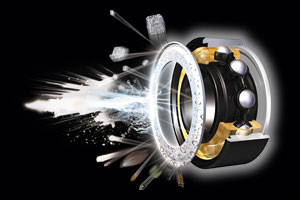

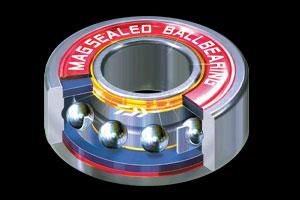

MAGSEALED BALL BEARING

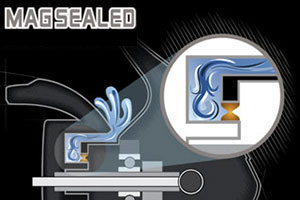

Saltiga models feature the Magsealed ball bearing. Magnetic oil bridges the gap between the inner and outer bearing races—keeping the elements out.
MAGNETIC OIL
Magnetic Oil is one of a new generation of Nano Fluids that can change density and shape when a magnetic field is applied.
CORROSION RESISTANT BALL BEARINGS
Last up to 12 times longer than standard stainless steel ball bearings.
Model
Number
Bearings Gear Ratio Line Per
Handle Turn
Wt.
(oz.)
Line Capacity
(Lb. Test / Yards)
Drag
Max
SABAYJ3500H-JDM 12 (2MBB, 9CRBB, 1BB, 1RB) 5.7:1 38.2” 15.2 MONO: 12/300,14/220
J-BRAID: 20/330, 30/220
22
SABAYJ4000H-JDM 12 (2MBB, 9CRBB, 1BB, 1RB) 4.9:1 33.9” 15.2 MONO: 16/270, 20/220
J-BRAID: 30/270, 40/200
22
